About Industrial Sediment Filters

Water can be contaminated by suspended particles like sand, silt, rust, and dirt, which can block filtration systems and reduce efficiency. Sediment filters act as the first line of defense, ensuring clear water and longer-lasting filtration performance. These filters are essential for various water purification systems, from commercial water purifiers to industrial RO systems.

HOW SEDIMENT FILTERS WORK – Sediment filters trap fine particles, preventing them from reaching RO membranes and other filtration stages. They are generally used in cartridge filters for treating the water, helping to maintain consistent flow of water and improve the lifespan of the whole filter purification systems.

Sediment filters are available in various sizes and micron ratings, making them ideal for customized filtration needs.

There are two main types of sediment filters:

  • PP Yarn Wound Filter Cartridges: PP yarn wound filters have a high dust-holding capacity and are suitable for high-flow applications. They are two types, open ended cartridges and threaded cartridges, which are available in various lengths (10”, 20”, 30” & 40”) and diameters (2.5”, 4.0” & 4.5”)
  • PP Melt Blown (Spun) Filter Cartridge: A cost-effective option for trapping fine sediments in commercial & industrial water purifiers, which are available in various lengths (10”, 20”, 30” & 40”) and diameters (2.5” & 4.0’)

Product Types

Looking for a Reliable Water Purifier?

Let’s Talk

Download Brochures

Key Features

  • Extended Filter Life:
    Higher Dust Holding Capacity (HDC) of PP yarn wound filters ensures longer usage before replacement.
  • Backwashable & Reusable:
    Easily extend the life of PP yarn wound filters, with a backwash cycle every 4-5 thousand litres or once a month.
  • Zero Foam/Froth Formation:
    Flush-free design delivers clear water from the first use.
  • BIS 9845 Standard Compliance:
    Manufactured with food-grade materials and tested for safety and quality standards.
  • Effective Turbidity Reduction:
    Reduces Total Suspended Solids (TSS) by 80% or more, with quality-tested filtration performance in every batch.
20 inch x 4 inch wound filter
20 inch x 2.5 inch wound filter
YW_30x2.5
YW 10x2.5
filter-1

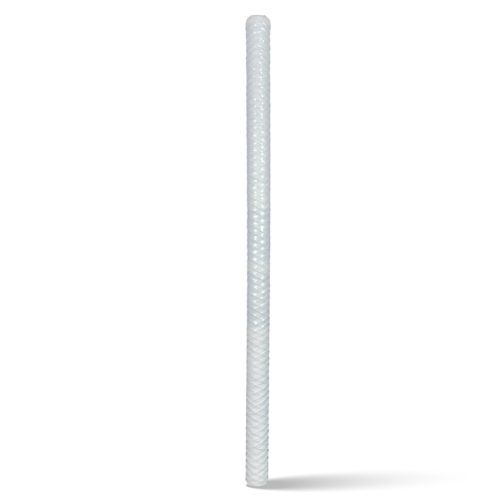

YW_40x2.5 1

PP Yarn Wound Filter Cartridge

PP Yarn Wound Filters are known for their high dust-holding capacity, making them suitable for heavy-duty filtration applications. These cartridges for water purifiers trap fine sediments and ensure water is safe and clear.

Specifications:

  • Filter Type: Open Ended & Threaded
  • Material: 100% PP  (Flush Free is also available)
  • Backwashable: Yes
  • Sizes Available: 10″, 20″, 30″, and 40″ in length
  • Diameter Range: 2.5″, 4.0” & 4.5″
  • Nominal Micron Rating: 1, 3, 5, 10, 20 & 50 microns (99% efficiency)

Applications:

  • Commercial & Institutional drinking water purifiers 50 LPH, 100 LPH, 250 LPH, 500 LPH & 1000 LPH
  • Effluent Treatment Plants (ETP) & Sewage Treatment Plants (STP)
  • Packaged drinking water plants (Bottling Plants)
  • Industrial water treatment plants
  • Beverages & juices manufacturing plants

Available Variants:

10″ (Length) x 2.5″ (Diameter)
Open-Ended Filter

20″ (Length) x 2.5″ (Diameter)
Open-Ended Filter

20″ (Length) x 4.0″ (Diameter)
Open-Ended Filter

30″ (Length) x 2.5″ (Diameter)
Open-Ended Filter

40″ (Length) x 2.5″ (Diameter)
Open-Ended Filter

Threaded Candle
20″ (Length) x 2.5″ (Diameter)

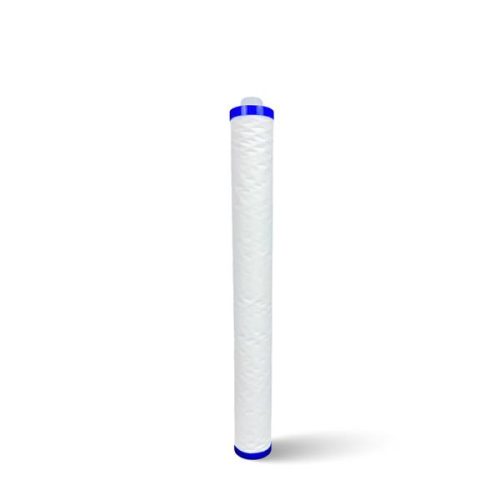

PP Melt Blown (Spun) Filter Cartridge

PP Melt Blown (Spun) Filters are cost-effective filters. These cartridges are used in water purifiers for clearing water, provide high sediment retention, protecting RO membranes and extending the life of purification systems.

Specifications:

  • Nominal Micron Rating: 5 microns (99% efficiency)
  • Sizes Available: 10″, 20″, 30″, and 40″ in length
  • Diameter Range: 2.5″ & 4.0″

Applications:

  • Commercial & Institutional drinking water purifiers 50 LPH, 100 LPH, 250 LPH, 500 LPH & 1000 LPH
  • Effluent Treatment Plants (ETP) & Sewage Treatment Plants (STP)
  • Packaged drinking water plants (Bottling Plants)
  • Industrial water treatment plants
  • Beverage & juice manufacturing plants

Available Variants:

10″ (Length) x 2.5″ (Diameter)

20″ (Length) x 2.5″ (Diameter)

20″ (Length) x 4.0″ (Diameter)

Why Choose Our Sediment Filters?

  • High Filtration Efficiency: Designed for water treatment, these filters efficiently remove sediments, rust, and fine particles before they reach the next filtration stage.
  • Multiple Size Options: Available in various lengths and diameters, including open ended cartridges and threaded cartridges, to fit different filtration systems.
  • Durable & Cost-Effective: Our PP Yarn wound filter cartridges provide long-lasting performance, reducing the need for frequent replacements.
  • Protects RO Membranes: Our sediment cartridge filters for RO water purifiers, safeguards the RO membranes from clogging and damage.
