About Domestic Sediment Filters
Water carries tiny suspended particles that make it turbid and affect its quality. A sediment filter acts as the first stage of purification, helping to reduce these impurities. These filters work by trapping solid particles, preventing them from clogging your RO system or affecting the performance of your water purifier. Whether you need a sediment filter for whole-house filtration or a sediment filter for water purifier, these filters help in keeping your water clear and safe for further treatment.
Yarn Wound Sediment Filters
These filters are made from 100% pure polypropylene yarn, carefully wound in a specific pattern to create fine filtration layers. This pattern helps ensure required nominal micron rating. The wound filters technically called as depth filters because the dust particles are trapped during filtration deep into the media depth thus increasing dust holding capacity of
the filter.
Pre-Filters
Installed outside the purifier to protect the purifier from high turbidity and pressure fluctuations. These filters are easily accessible and replaceable.
Inline Filters
The essential 1 st stage of water purifier, and the most important part of water purifier design. This filter provides the higher filtration efficiency and prevent damages of further purification components.
Filters

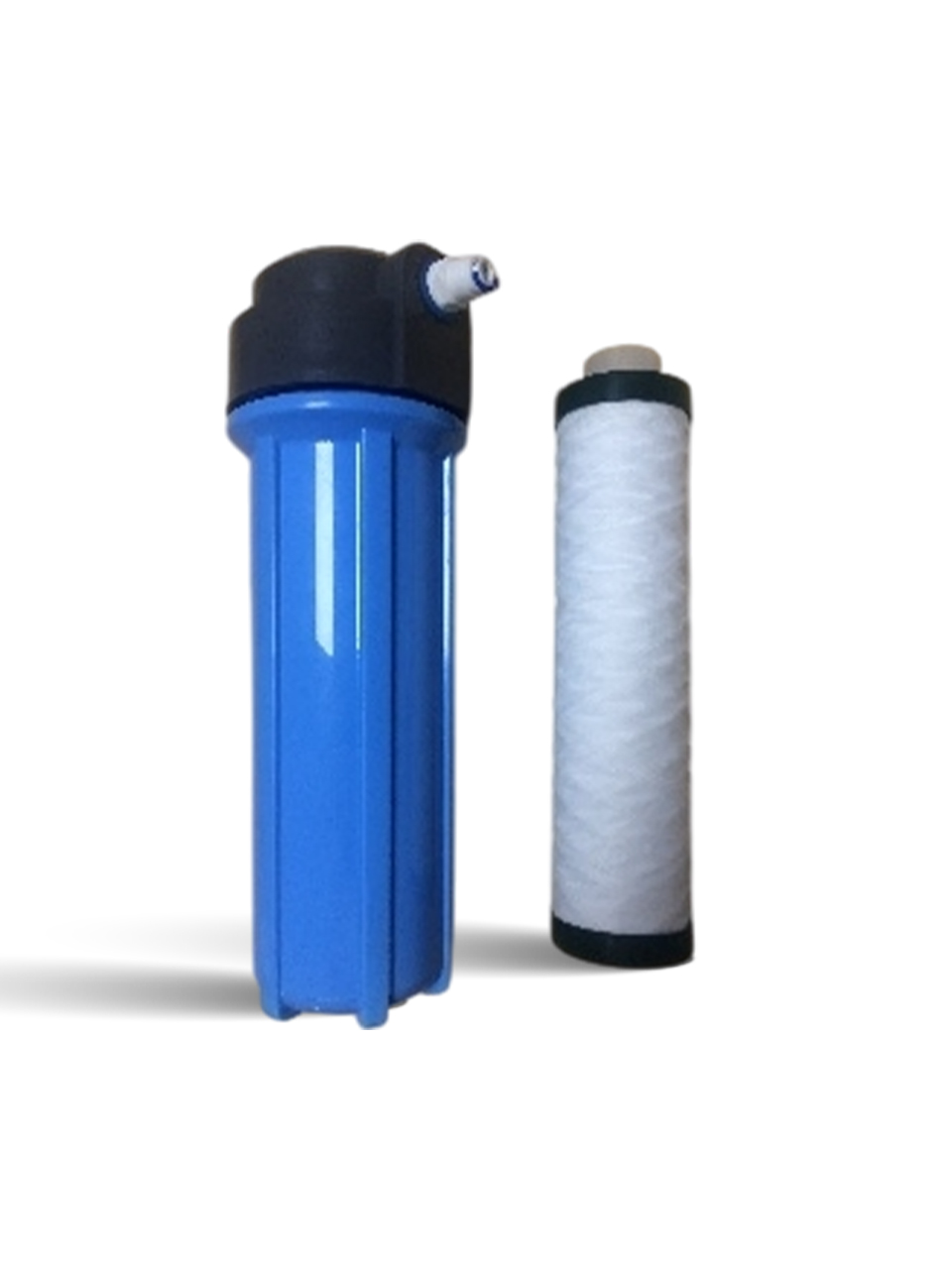

Pre-Filters (Mounted Outside the Purifier)
10″ PF Housing
High-strength casing that work under high pressure, designed for easy cartridge replacement with leak-proof sealing.
10″ PF Cartridge
A high-dust-holding capacity sediment filter with turbidity reduction efficiency more than 80%, and lasting up to 15,000 litres subjected to input water condition.

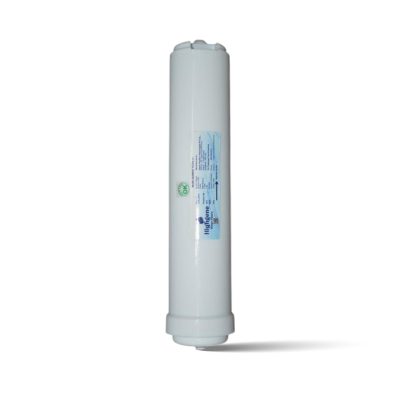

Inline Filters (Placed Inside the Purifier)
10″ Inline Sediment Filter
A PP yarn wound sediment filter in an 11″ housing, with PL4 & PL6 nozzles on either side. Also available in Quick fix connection for easy pipe insertion.
8″ Inline Sediment Filter
8” cartridge assembled inside the 9” housing which has input/output at same side. The assembly of inline filters uses spin welding technology to ensure leak proof.
Compatible Sediment Filter
A 225mm-long sediment filter cartridge in 8” housing, fitted with QFC connectors for easy setup. This cartridge is suitable for most of the purifiers in market since it is very small in size and more effective in filtration.
PE Thermobond Sediment Filters
Instead of yarn, these filters are made from a hot-rolled polyester cloth specially designed for hot fusion, precisely cut into required sizes. These filters are very flexible in manufacturing and provide higher turbidity reduction.
Pre-Filters
Acts as a protective layer before water enters the purifier.
Inline Filters
Used inside filtration systems to trap fine particles and ensure smooth water flow.
Filters
Pre-Filters – 10″ x 2.5″ Cartridge:
A high-capacity sediment filter with a 60mm outer diameter and 40mm inner diameter, filtering capacity of 15,000 liters.
Inline Filters – 10″ Inline Sediment Filter
A compact, high-efficiency inline sediment filter, fitted into an 11″ spin-welded housing, built to last 15,000 liters.
Uses & Applications
- RO & UV Water Purifiers
Preventing large particles from reaching the RO membrane. - Whole House Water Filtration
It is used for whole-house filtration, making sure clear water flows through every tap. - Inline Filtration Systems
Helps in reducing turbidity and improving water flow in inline filter sets. - External Pre-Filters
Installed outside purifiers as an external sediment filter, ensuring longer purifier life. - Commercial Water Purification
Used in sediment filter RO systems for restaurants, offices, and packaged drinking water plants.
Why Choose Our Domestic Sediment Filters?
- High Dust-Holding Capacity
Ensures longer filter life and better efficiency. - Easy to Install & Replace
Designed for hassle-free maintenance, whether used as a sediment filter cartridge or in an inline sediment filter setup. - Compatible with Multiple Purification Systems
Works for RO purifiers, whole-house filtration, and external pre-filters. - Cost-Effective & Durable
Competitive sediment filter price, built to last longer without frequent replacements.
